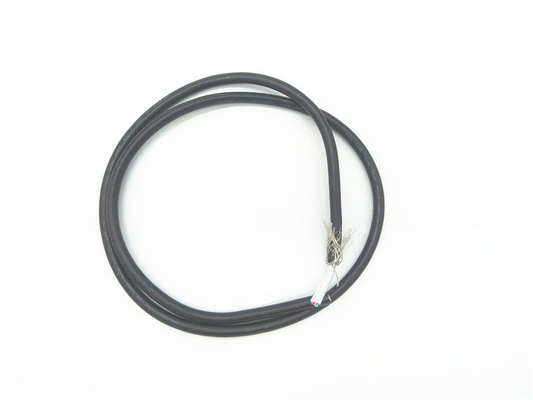

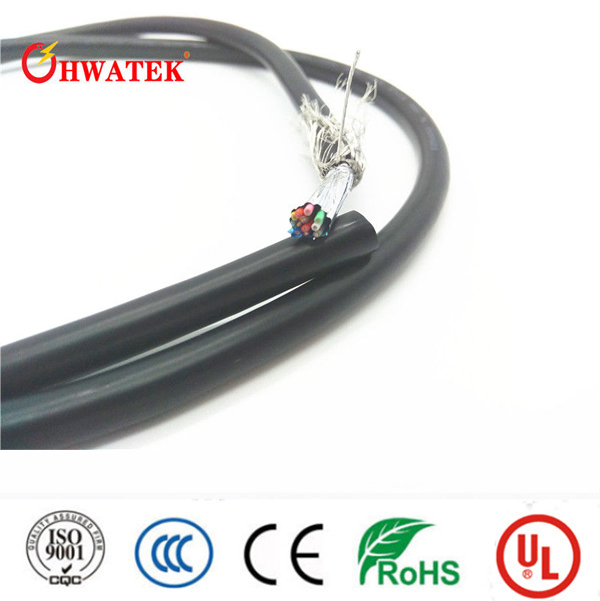

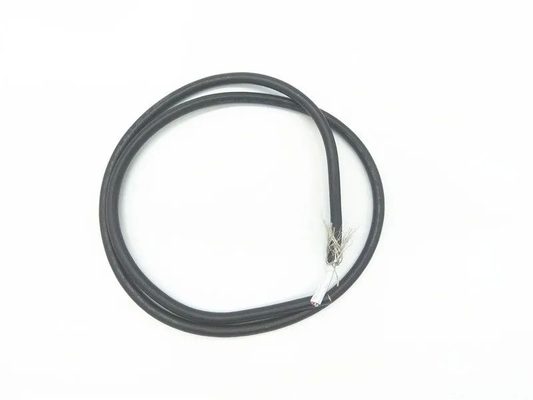

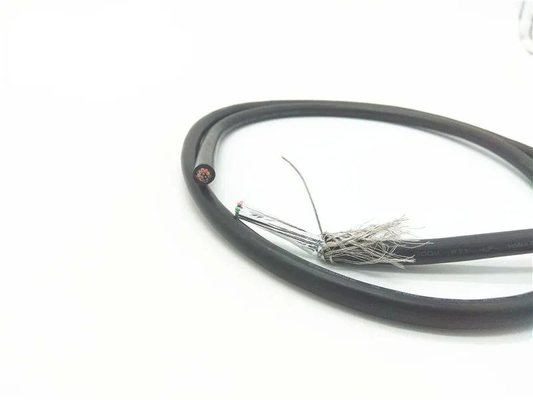

Hwatek 24AWG Twisted Shield Robot Cable 305m Roll

Hwatek 24AWG Twisted Shield Robot Cable 305m Roll
Hwatek 24AWG Twisted Shield Robot Cable 305m Roll Hwatek 24AWG Twisted Shield Robot Cable 305m Roll Hwatek 24AWG Twisted Shield Robot Cable 305m Roll Hwatek 24AWG Twisted Shield Robot Cable 305m Roll

Grote Afbeelding :  Hwatek 24AWG Twisted Shield Robot Cable 305m Roll

Productdetails:
Certificering: ISO9001, CCC, RoHS
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 3.000
Prijs: 0.5
Contact
Gedetailleerde productomschrijving
Geleidingsmateriaal: Koper Schede materiaal: PVC
Isolatiemateriaal: TPEEE Materiële vorm: Ronde draad
Geleidingsgrootte: 16-24 AWG Max Resistance: 87,6 Ω/km
Nominale temperatuur: 80ºC Nominale spanning: 300V
Dirigent dia: 0,60-0,94 mm Isolatiedikte: 0,30-0,35 mm
Nominale dag: 1.30-14.8 mm Schild Dikte: 1,0 mm
Schild materiaal: Vlechten Jas materiaal: PVC of PU
Vlamproef: UL VW-1, CSA FT1
Markeren:

24AWG twisted shield robot cable

,

305m industrial flexible cable

,

shielded robot cable with warranty

Long-Distance Moving Type Twisted Shielding Signal Robot Cable
Product Specifications
Attribute Value
Conductor Material Copper
Sheath Material PVC
Insulation Material TPEE
Material Shape Round Wire
Range of Application Industrial Robot
Brand Hwatek
Color Optional
Qty/Roll 305m, 610m or as Request
Transport Package Rolled in Reels, Packed in Pallets
Trademark Hwatek
Origin China
HS Code 8544492100
Product Overview
Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 0
Technical Specifications
Product Number Cores Size AWG NO./mm Conductor Dia. mm Thickness mm Nom. Dia. mm Material Nom. Thickness mm Nom. Dia. mm Max. Cond. Resistance (200C) Ω/km
HTR***001 2P 24 41/0.08 0.60 0.30 1.30 Inner jacket+ Braiding 1.0 8.0 87.6
HTR***002 4P 9.0
HTR***003 6P 10.2
HTR***004 8P 13.9
HTR***005 2P 20 7/16/0.08 0.94 0.35 1.77 Inner jacket+ Braiding 1.0 9.6 34.6
HTR***006 4P 11.0
HTR***007 6P 12.8
HTR***008 8P 14.8
Product Features
Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 1 Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 2
Application

Long distance drag chain cable

Product Characteristics
  • Pass UL VW-1 and CSA FT1 vertical flame test
  • Oil and heat resistance
  • Anti-bending, abrasion and torsion
Construction
  • Stranded bare copper conductor, 16-24AWG
  • TPEE insulation
  • Braiding shield
  • PVC or PU jacket
Technical Parameters
  • Rated temperature: 80ºC
  • Rated Voltage: 300V
Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 3 Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 4
Certifications
Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 5
Production Process
Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 6
Shipping
Hwatek 24AWG Twisted Shield Robot Cable 305m Roll 7
Frequently Asked Questions
Q: What can you supply?

A: We do produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.

Q: What are the certificates do you get?

A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.

Q: Can we get samples before ordering?

A: Yes, we are willing to arrange samples for you.

Q: What's your lead time?

A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.

Q: How can you guarantee the product quality?

A: Always a pre-production sample before mass production and final Inspection before shipment.
