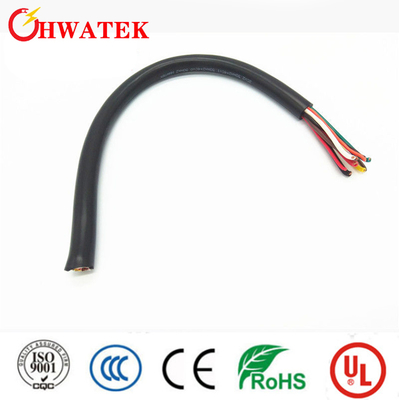

UL2517 4C×24AWG+W Industrial Flexible Cable with PVC Insulation and Jacket for 105℃ 300V Applications

Grote Afbeelding : UL2517 4C×24AWG+W Industrial Flexible Cable with PVC Insulation and Jacket for 105℃ 300V Applications

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	HWATEK
Certificering:	ISO9001, CE, RoHS
Modelnummer:	UL2517

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1000
Prijs:	negotiable
Verpakking Details:	Rollen of rollen
Levertijd:	4 weken
Betalingscondities:	T/t
Levering vermogen:	1000 km/ maand

Contact

Gedetailleerde productomschrijving

Geleidingsmateriaal:	Ingeblikt vastgelopen koper	Schede materiaal:	PVC
Isolatiemateriaal:	PVC	Nominale spanning:	300V
Nominale temperatuur:	105oC	Max geleiderweerstand:	94.2Ω/KM
Kabelvoltage:	AC 2.0KV/1min	Specificatie:	HT2505408
Markeren:	105℃ Rated Temperature Industrial Flexible Cable , 300V Rated Voltage UL2517 Cable , 4C×24AWG+W PVC Jacket Cable

UL2517 4C×24AWG+W PVC Jacket PVC Jacket Tinned Copper Stranded 105℃ 300V Cable

Product Specifications

Construction

Conductor		Tinned Copper Stranded
Cross section		24AWG
Construction		7/0.20mm
Strand Dia.(Ref.)		0.60mm
Insulation		PVC
Nom.Thickness		0.23mm
Min.Thickness		0.18mm
Insulation Dia.		1.10±0.10mm
Insulation colour		1.black 2.brown 3.red 4.orange
Filler		Optional
Material		Non-woven
Assembly		4C×24AWG+W
Jacket		PVC
Nom.Thickness		0.76mm
Min.Thickness		0.61mm
O.D.		4.60±0.20mm
Colour		Per request

Technical Specifications

Electric Performance

Rated Temperature				105℃
Voltage rating				300V
Max.conductor DC resistance(20℃)				94.2Ω/km
Dielectric Strength AC				2.0kV/1min
Mechanical Performance

				Jacket
Material				PVC
Tensile strength				≥10.3MPa
Elongation				≥100%
Aged condition				136±1℃×168h
Percent of original tensile strength				≥70%
Percent of original elongation				≥65%

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product character:

Flame rated : VW-1

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:113℃×168H

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

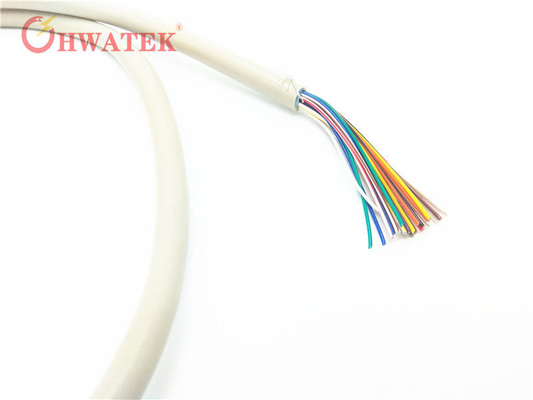

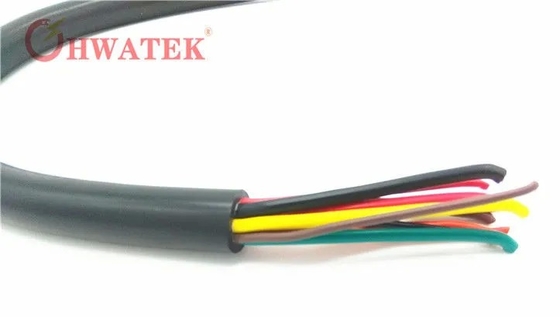

Product Images
