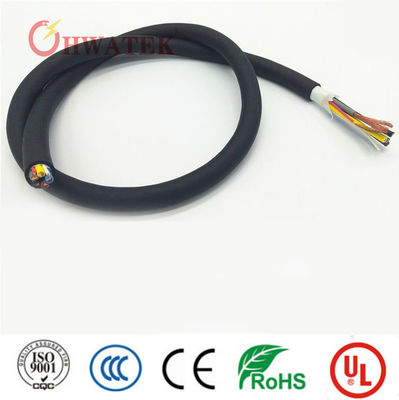

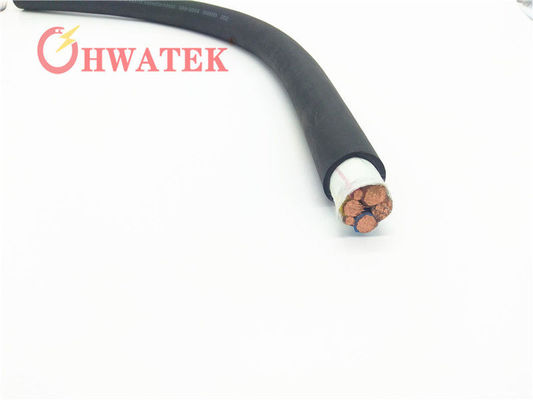

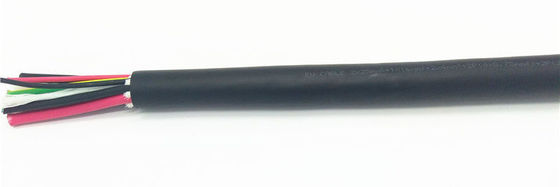

450V/750V AC/DC EV Charging Cable with 2 X 50mm2+35mm2+6X0.75mm2 Copper Conductor for Electric Vehicles

Name: 450V/750V AC/DC EV Charging Cable with 2 X 50mm2+35mm2+6X0.75mm2 Copper Conductor for Electric Vehicles
Brand: NANTONG HWATEK WIRES AND CABLE CO.,LTD.
Price: 0.50 USD
Availability: InStock

Grote Afbeelding : 450V/750V AC/DC EV Charging Cable with 2 X 50mm2+35mm2+6X0.75mm2 Copper Conductor for Electric Vehicles

Productdetails:

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	50 meter

Contact

Gedetailleerde productomschrijving

Spanningswaarde:	450V/750V AC/DC	Materiaal geleider:	Koper
Schede materiaal:	TPU	Isolatiemateriaal:	EVI-2
Kabelspecificatie:	2c × 50 mm²+1C × 35mm²+6c × 0,75 mm²+W	Huidige beoordeling:	200a
Geleidingsgrootte:	70mm ²	Buitendiameter:	~ 31 mm
Nominale temperatuur:	-40 ~ +90 ° C	Nominale spanning DC:	1500V DC (IEC), 1000V DC (GB)
Minimale buigradius:	5xod	Brandbaarheidstest:	Iec60332-1
Materiële vorm:	Ronde draad	Signaalkernen:	3x Paar 2x0,75mm²
Productiecapaciteit:	100 km/maand
Markeren:	450V/750V AC/DC EV Charging Cable , 2 X 50mm2+35mm2+6X0.75mm2 EV Power Cable , Copper Conductor Electric Vehicle Charging Cable

450V/750V AC/DC EV Charging Cable 2 X 50mm²+35mm²+6X0.75mm²

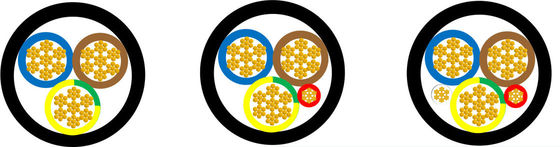

Basic Specifications

Cable Specification: 200A, 70mm²
Power: 1x50mm² Black Core + 1x50mm² Red Core
PE: 1x35mm² Green-Yellow Core
Signal: 3x Pairs 2x0.75mm²
Cores Color: Orange, Blue, White, Violet, Brown, Grey
Sheath Outer Diameter: ~31mm
Cable Standard: IEC 62893, IEC 62893-4-1

Certification

Certificate No.	Product Types
CQC16011142377	EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V

Technical Specifications

Reference Standard: IEC 62893, IEC 62893-4-1
Product Category: AC:EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90-450/750V 1.0-70(2-5C)+0.5-0.75(P/P2)(1-10C)
Rated Temperature: -40°C to +90°C
Rated Voltage: IEC 1500V DC / GB 1000V DC
Conductor: Bare copper stranded
Insulation Material: EVI-2
Sheath Material: TPU

Product Features

Flexible construction
Resistant to cold, oil (11 types), ozone, abrasion, UV
Withstands external pressure and thermal stress
IEC60332-1 flammability test compliant
Minimum bending radius: 5xOD
Easy installation

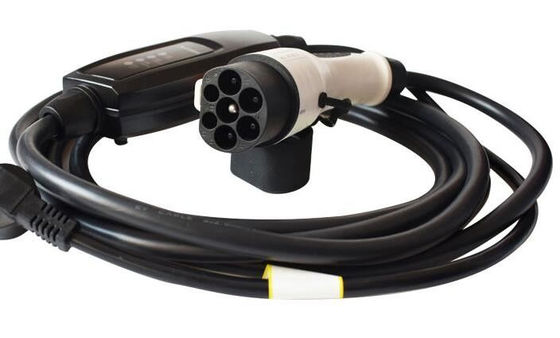

Product is applicable for all kinds of electric vehicles, charging piles, power stations, and charging stations.

Customization Options

Detailed dimensions are subject to product specifications
Other specifications can be designed and manufactured according to customer requirements
Sheath color is generally black or orange, but can be customized

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
