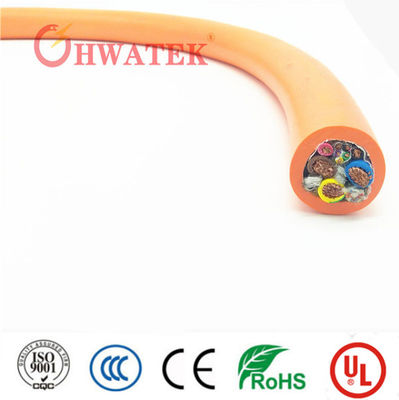

EV Cable for Connection Wire Between EV Charging Equipment
Product Description
Application: Connection wire between EV charging equipment and EV, suitable for various electric vehicles, charging stations, and charging piles.
Key Features
- Complies with UL62 standard
- Flexible cable design for easy installation
- Excellent resistance to oil, pressure, abrasion, and low temperatures (-40°C)

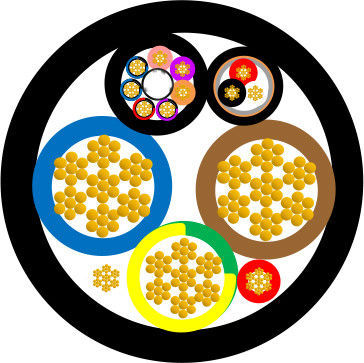

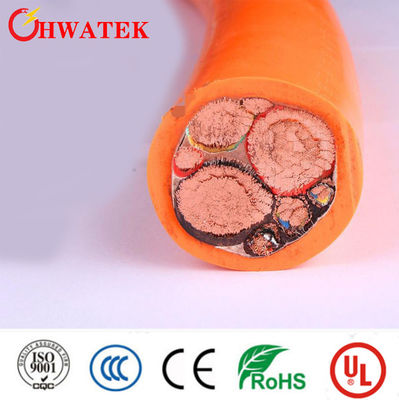

Construction
- Conductor: Tinned or bare copper
- Insulation material: TPE or PVC
- Jacket material: TPE or PVC
Technical Parameters
- Rated temperature: 80°C~105°C
- Rated Voltage: 450/750V
Note: Similar specifications can be customized according to customer requirements.
International Specification of Charging Pile System Wire
| Wire Configuration |
Rated Voltage |
Reference Current |
Color |
| 2x120mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
300A |
Orange |
| 2x95mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
270A |
Orange |
| 2x70mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
220A |
Orange |
| 2x50mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
180A |
Orange |
| 2x35mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
125A |
Orange |
| 2x25mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
100A |
Orange |
| 2x20mm²+25mm²+2x4mm²+2P(2x0.75mm²) |
450/750V |
95A |
Orange |
Company Profile

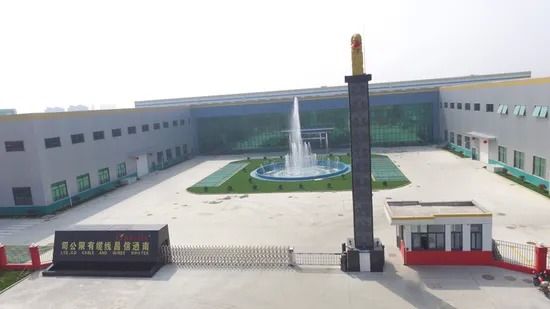

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicated to R&D and production of various wires and cables including industrial control, communication instruments, medical control, green energy EV and special wires and cables. OEM & ODM services are available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All our wire and cable products are certified with CCC, UL, CUL, CE, CSA, TUV, DEKRA, IEC, CQC or ETL standards.
With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we maintain a comprehensive sales network to serve customers worldwide.
Frequently Asked Questions
Q: What products do you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Normal production time is 2-3 weeks, extending to 5-6 weeks during peak seasons.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling and final inspection before shipment to ensure quality standards.
