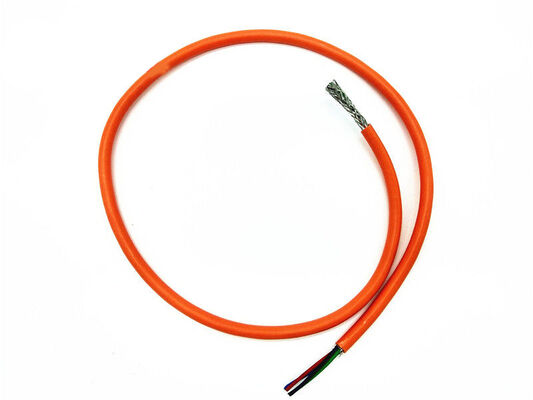

UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Grote Afbeelding :  UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Productdetails:
Certificering: ISO9001, CCC, RoHS
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 3.000
Prijs: 0.5
Contact
Gedetailleerde productomschrijving
Geleidermateriaal: Koper Schede materiaal: PVC
Isolatiemateriaal: TPE Materiële vorm: Ronde draad
Nominale temperatuur: -40 ~ +105 ° C Nominale spanning: 300V (evje, evjt), 600V (evt, evt)
Dirigenttype: Gestrand kaal of gekopper Draadspecificaties: 3 × 16AWG tot 2 × 2AWG+4AWG+18AWG
Verwijzingsstroom: 12a tot 100a Diameterbereik: 8,2 mm tot 30,1 mm
Koude Weerstand: Ja Slijtvastheid: Ja
Oliebestendigheid: Ja Waterbestendigheid: Ja
UV-bestendigheid: Ja
Markeren:

UL Certified EV Charging Cable

,

300V/600V Rated Electric Vehicle Charging Cable

,

Cold Resistant EV Power Cable

UL Certified EVE EVT EVJE EVJT Electric Vehicle Charging Cable
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 0

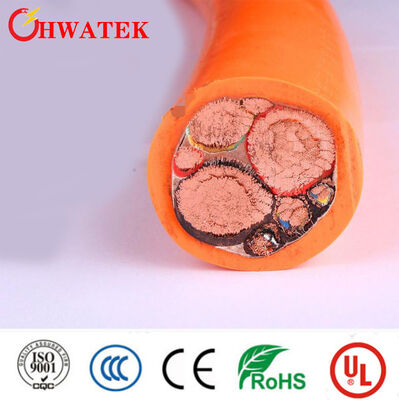

Structure Diagram
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 1
Reference Standards
UL62 CSA C22.2 No.49
Product Categories
EVE / EVT
18AWG-500cmil, ≥2 Cores
EVJE / EVJT
18AWG-12AWG, 2-6 Cores
Construction Specifications
Rated Temperature
-40°C to +105°C
Rated Voltage
300V (EVJE, EVJT)
600V (EVE, EVT)
Conductor
Stranded bare or tinned copper
Insulation Material
TPE/PVC
Sheath Material
TPE/PVC
Performance Features
  • Cold resistance
  • Abrasion resistance
  • Oil resistance
  • Water resistance
  • UV resistance
  • Passes VW-1 flame test
  • Excellent resistance to flame propagation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
Category Wire Specifications Reference Current (A) Diameter (mm)
UL:EVE,EVT 600V3×16AWG1210.8
UL:EVE,EVT 600V3×14AWG1613.4
UL:EVE,EVT 600V3×12AWG2314.2
UL:EVE,EVT 600V3×10AWG3216.2
UL:EVE,EVT 600V3×16AWG+1×18AWG1211.4
UL:EVE,EVT 600V3×14AWG+1×18AWG1613.6
UL:EVE,EVT 600V3×12AWG+1×18AWG2314.3
UL:EVE,EVT 600V3×10AWG+1×18AWG3215.9
UL:EVE,EVT 600V3×8AWG+1×18AWG4621.8
UL:EVE,EVT 600V2×8AWG+10AWG+18AWG4620.9
UL:EVE,EVT 600V2×6AWG+8AWG+18AWG6323.1
UL:EVE,EVT 600V2×4AWG+6AWG+18AWG7526.5
UL:EVE,EVT 600V2×2AWG+4AWG+18AWG10030.1
UL:EVE,EVT 600V3×16AWG+2×18AWG1212.1
UL:EVE,EVT 600V3×14AWG+2×18AWG1613.9
UL:EVE,EVT 600V3×12AWG+2×18AWG2315.0
UL:EVE,EVT 600V3×10AWG+2×18AWG3216.6
UL:EVE,EVT 600V2×8AWG+10AWG+2×18AWG4621.9
UL:EVE,EVT 600V2×6AWG+8AWG+2×18AWG6324.8
UL:EVJE,EVJT 300V3×16AWG128.2
UL:EVJE,EVJT 300V3×14AWG169.0
UL:EVJE,EVJT 300V3×12AWG2310.1
UL:EVJE,EVJT 300V3×16AWG+1×18AWG128.8
UL:EVJE,EVJT 300V3×14AWG+1×18AWG169.5
UL:EVJE,EVJT 300V3×12AWG+1×18AWG2311.2
UL:EVJE,EVJT 300V3×16AWG+2×18AWG129.5
UL:EVJE,EVJT 300V3×14AWG+2×18AWG1612.1
UL:EVJE,EVJT 300V3×12AWG+2×18AWG2313.2
1. Detailed dimensions are subject to product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. Sheath color is generally black or orange. Custom colors available upon request.
Company Profile
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 2
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Quality Certifications
We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certificates. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.
Management Philosophy
Operating with global customers through our well-established sales system based on the principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certificates & Quality Assurance
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 3 UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 4

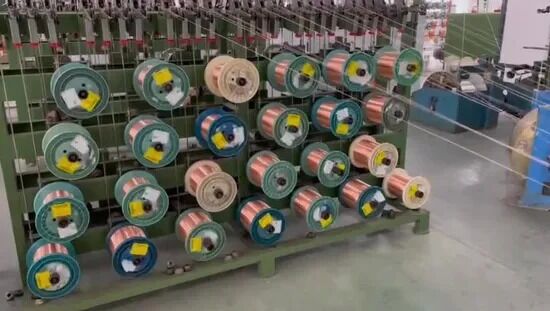

Production Process
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 5
Shipping & Logistics
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 6
Frequently Asked Questions
What products do you supply?
Consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certificates do you hold?
UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Can we get samples before ordering?
Yes, we are willing to arrange samples for you.
What is your lead time?
Normally 2-3 weeks, 5-6 weeks during peak season.
How do you guarantee product quality?
Pre-production samples before mass production and final inspection before shipment.
Major Customers
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 7
