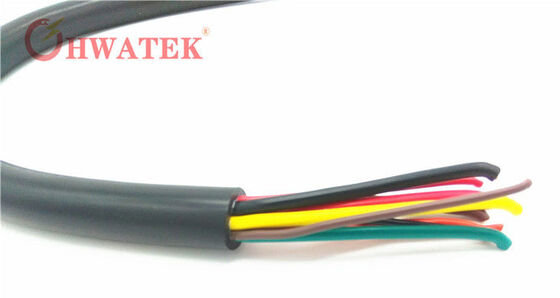

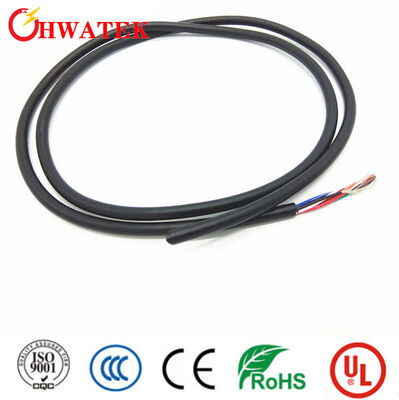

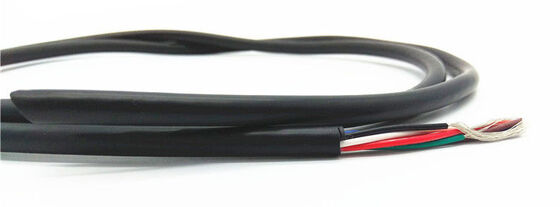

STOW 600V 105ºC UV Resistance Multi Conductor Cable
Product Overview
ST, STW, STO, STOW 600V 105ºC cables with UV resistance, moisture resistance, and VW-1 rating for elevator machine room wiring and power applications.
Product Introduction
This 600V rated power cable for elevator machine room wiring features copper conductors, insulation, filling, tape, optional shielding, and outer sheath. Designed with high flexibility, high temperature resistance, and flame retardant properties, it meets requirements for outdoor use and special environments including moisture resistance, UV resistance, and oil resistance. All materials comply with the latest RoHS & Reach environmental standards.
Key Characteristics
High flexibility for easy installation
105ºC temperature rating
UV and moisture resistance
Flame retardant VW-1 rated
Oil resistant at 60ºC or 80ºC
RoHS & Reach compliant
Application Field
Primarily used for fixed installation of transmission cables in elevator machine rooms. Typical applications include distribution box to control cabinet power lines and control cabinet to motor power lines.
Cable Structure Diagram
Cable Structure: 1- Conductor, 2- Insulation, 3- Filling, 4- Strap, 5- Shield (Optional), 6- Outer Sheath
Printing: E366579 TYPE STOW ***AWG 105ºC 600V VW-1 HWATEK
Basic Construction
Conductor: Solid or Stranded
Insulation: Special mixed PVC
Shield or Braid: Optional
Jacket: Special mixed PVC
Standards Compliance
International Standards: UL62, UL1581
RoHS Compliant
REACH Compliant
Technical Specifications
Rated Voltage: 600V
Temperature Range: -40ºC to 105ºC
Flame Rating: VW-1, FT1, FT2
Oil Resistance: 60ºC or 80ºC Oil
Voltage Withstand Test: AC 2.0kV/1min
Product Specifications
| Number of cores*Specifications |
Conductor structure |
Conductor outer diameter (mm) |
Average insulation thickness (mm) |
Insulation outer diameter (mm) |
Average thickness of sheath (mm) |
Finished outer diameter (mm) |
Cable net weight (kg/km) |
Maximum conductor DC resistance (20ºC) Ω/km |
| 3C*12AWG(4mm2) | 65/0.254 | 2.36 | 1.14 | 4.8±0.20 | 2.41 | 16±0.60 | 323.2 | 5.64 |
| 3C*10AWG(6mm2) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 2.41 | 17.9±0.60 | 426.9 | 3.546 |
| 3C*8AWG(10mm2) | 7/24/0.254 | 4.10 | 1.52 | 7.4±0.30 | 2.79 | 22.8±1.0 | 672.6 | 2.23 |
| 3C*6AWG(16mm2) | 7/38/0.254 | 5.00 | 1.52 | 8.3±0.30 | 3.18 | 26±1.5 | 916.2 | 1.403 |
| 3C*4AWG(25mm2) | 7/60/0.254 | 6.30 | 1.52 | 9.7±0.40 | 3.56 | 29.8±1.5 | 1289.5 | 0.882 |
| 3C*2AWG(35mm2) | 19/35/0.254 | 8.10 | 1.52 | 11.5±0.40 | 3.94 | 34.4±1.5 | 1838.3 | 0.5548 |
| 4C*12AWG(4mm2) | 65/0.254 | 2.36 | 1.14 | 4.8±0.20 | 2.41 | 17.2±0.60 | 389.0 | 5.64 |
| 4C*10AWG(6mm2) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 2.41 | 19.8±1.0 | 522.5 | 3.546 |
| 4C*8AWG(10mm2) | 7/24/0.254 | 4.10 | 1.52 | 7.4±0.30 | 3.18 | 26±1.5 | 870.6 | 2.23 |
| 4C*6AWG(16mm2) | 7/38/0.254 | 5.00 | 1.52 | 8.3±0.30 | 3.56 | 28.9±1.5 | 1182.9 | 1.403 |
| 4C*4AWG(25mm2) | 7/60/0.254 | 6.30 | 1.52 | 9.7±0.40 | 3.94 | 33.1±1.5 | 1657.8 | 0.882 |
| 4C*2AWG(35mm2) | 19/35/0.254 | 8.10 | 1.52 | 11.5±0.40 | 4.32 | 38.1±1.5 | 2365.0 | 0.5548 |
| 5C*12AWG(4mm2) | 65/0.254 | 2.36 | 1.14 | 4.8±0.20 | 2.41 | 18.6±0.60 | 461.5 | 5.64 |
| 5C*10AWG(6mm2) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 2.41 | 21.4±1.0 | 623.4 | 3.546 |
| 5C*8AWG(10mm2) | 7/24/0.254 | 4.10 | 1.52 | 7.4±0.30 | 3.18 | 28.1±1.5 | 1038.7 | 2.23 |
| 5C*6AWG(16mm2) | 7/38/0.254 | 5.00 | 1.52 | 8.3±0.30 | 3.56 | 31.2±1.5 | 1414.0 | 1.403 |
| 5C*4AWG(25mm2) | 7/60/0.254 | 6.30 | 1.52 | 9.7±0.40 | 3.94 | 35.8±1.5 | 1990.1 | 0.882 |
| 5C*2AWG(35mm2) | 19/35/0.254 | 8.10 | 1.52 | 11.5±0.40 | 4.32 | 41.4±1.5 | 2857.3 | 0.5548 |
Note: Detailed dimensions and technical parameters are subject to our product specifications. The above products are non-shielded standard models, and can be customized according to customer requirements or actual usage.
