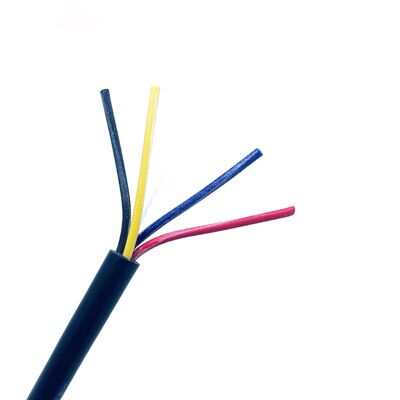

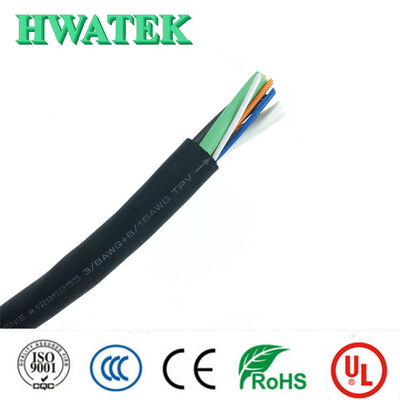

UL2517 300V Oil Resistant Multicore Flexible Cable
Product Overview
This 300V rated elevator control signal cable features copper conductors, insulation, filling, tape, optional shielding, and outer sheath construction. Designed for elevator shaft wiring applications, the cable offers high flexibility, temperature resistance up to 105°C, oil resistance, and flame retardancy. All materials comply with RoHS and Reach environmental standards.
Key Features
High Flexibility
Designed for easy installation in confined elevator spaces
Temperature Resistance
Rated for -40°C to 105°C operating temperatures
Oil Resistance
Suitable for 60°C or 80°C oil exposure
Flame Retardant
Meets VW-1, FT1, FT2 flame test standards
Application Fields
Primarily used for fixed installation of signal transmission cables in elevator shafts including:
- Control cabinet to hoistway switch wiring
- Safety circuit switch hoistway cable
- Upper/lower forced switches and limit switches
- Door lock trunk and branch cables
- Floor display main line and branch cables
| Scope of Application |
Rated Voltage |
Recommended Specifications |
Recommended Number of Cores |
Control cabinet → hoistway switch wiring
Safety circuit switch hoistway cable |
300V |
26AWG-14AWG |
7+1 |
| Upper forced switch, lower forced switch, upper limit switch, lower limit switch, ladder lock switch, fire return switch |
300V |
26AWG-14AWG |
2+1 |
| Door lock trunk cable and door lock branch cable in hoistway |
300V |
26AWG-14AWG |
2+1 |
Control cabinet → hoistway floor display wiring
Floor display main line cable, floor display branch cable |
300V |
26AWG-14AWG |
Number of layers +N+PE |
Cable Structure Diagram
Cable Construction:
1 - Conductor, 2 - Insulation, 3 - Filling, 4 - Strap, 5 - Shield (Optional), 6 - Outer sheath
Printing: E258652 AWM STYLE 2517 ***AWG 105ºC 300V VW-1- c AWM I/II A/B 105ºC 300V FT1 -LF- HWATEK
Basic Construction
- Conductor: Solid or Stranded copper
- Insulation: Special mixed PVC
- Shield or Braid: Optional
- Jacket: Special mixed PVC
Standards Compliance
International Standards: UL758, UL1581, UL2556
Environmental Compliance: RoHS, REACH Compliant
Technical Specifications
- Rated Voltage: 300V
- Temperature Rating: -40°C to 105°C
- Flame Rating: VW-1, FT1, FT2
- Oil Resistance: 60°C or 80°C Oil
- Voltage Withstand Test: AC 2.0kV/1min
Detailed Specifications
The following table provides detailed dimensional and electrical specifications for various cable configurations:
| Number of Cores × Specifications |
Conductor Structure |
Conductor Outer Diameter (mm) |
Average Insulation Thickness (mm) |
Insulation Outer Diameter (mm) |
Average Sheath Thickness (mm) |
Finished Outer Diameter (mm) |
Cable Net Weight (kg/km) |
Max Conductor DC Resistance (20°C) Ω/km |
| 2C×26AWG |
7/0.16 |
0.48 |
0.30 |
1.2±0.05 |
0.76 |
4.3±0.20 |
19.2 |
150 |
| 2C×24AWG |
7/0.20 |
0.60 |
0.30 |
1.3±0.05 |
0.76 |
4.5±0.20 |
21.9 |
94.2 |
| 2C×22AWG |
7/0.254 |
0.76 |
0.30 |
1.5±0.05 |
0.76 |
4.9±0.20 |
27.0 |
59.4 |
| 2C×20AWG |
7/0.32 |
0.96 |
0.30 |
1.7±0.10 |
0.76 |
5.3±0.20 |
33.7 |
36.7 |
| 2C×18AWG |
16/0.254 |
1.15 |
0.30 |
1.9±0.10 |
0.76 |
5.7±0.20 |
41.2 |
23.0 |
| 2C×16AWG |
26/0.254 |
1.49 |
0.30 |
2.2±0.10 |
0.76 |
6.4±0.30 |
55.2 |
14.6 |
| 2C×14AWG |
41/0.254 |
1.87 |
0.30 |
2.6±0.10 |
0.76 |
7.2±0.30 |
75.7 |
8.96 |
Note: Detailed dimensions and technical parameters are subject to our product specifications. The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.
